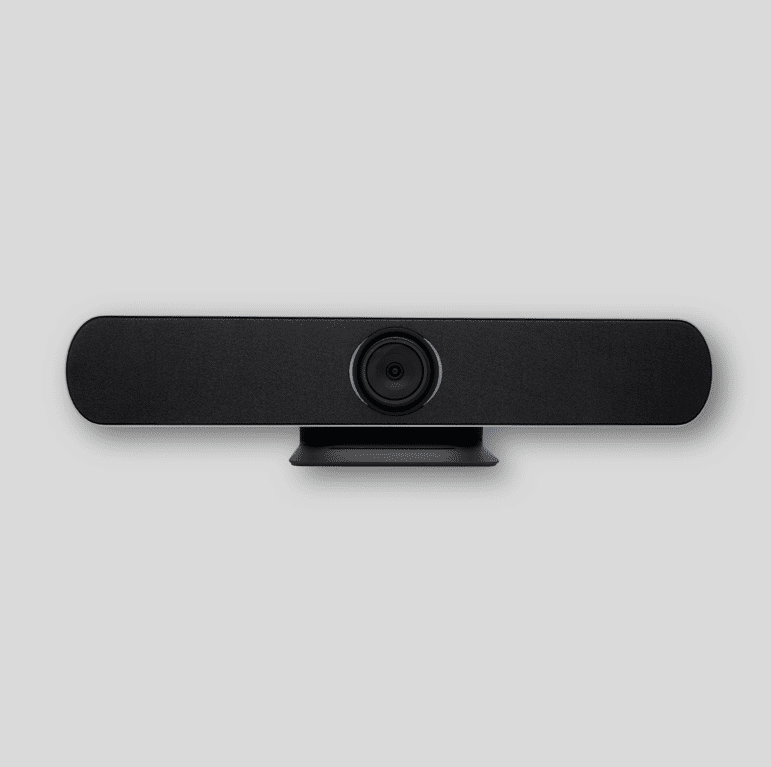

Eyqoo EK800 4K UHD ALL-IN-ONE ePTZ Videobar
Eyqoo EK800 uses an All-in-one design, ePTZ makes It has a 121° viewing angle and 5x zooms. Using 1/2.5 inch CMOS, the picture reaches 4K standard, the frame rate reaches 30fps, and it supports HDMI output. It is equipped with a 6-meter pickup and comes with a noise-canceling microphone with intelligent algorithms.
121° wide FOV + 5x zoom
|Frame Rate|| |
|Built-in Microphone|| |
Main Features of Eyqoo EK800 4K UHD ALL-IN-ONE ePTZ Videobar
It’s designed for small and medium-sized conference rooms, especially huddle rooms with 4-6 people, and to help enterprises tap the potential of internal small and mini-sized conference rooms to hold conferences more efficiently and cut lease cost.
Convenient for small and medium-sized enterprises to flexibly carry out daily business talks and team collaboration remotely; creating relaxed, free and smooth communication.
● Integration Design
The three-in-one design incorporating the 4K UHD camera, the beamforming microphone, and the full-frequency speaker helps reduce wiring and makes available easy video communication.
● 4K UHD
1/2.5-inch UHD CMOS sensor with 8.51 megapixels offers 4K (3840×2160)@30fps UHD images, downward compatible with various resolutions such as 1080P and 720P to meet users’ needs for different video experiences.
● Wide FOV
121° wide FOV (110° horizontal FOV), and 5x zoom; optical lenses tailored for video conferences; built-in electric tripod head (range of motion: horizontal and pitch ±15° ); easier for participants to be videoed.
● Abundant Interfaces
HDMI 1.4b and USB3.0 supported; the simultaneous output of UHD audios and videos is available.
● Easy to Deploy
Installation options like desktop, wall-mounted and TV/display mounted are available, so it’s easier to quickly install and deploy in crowded conference rooms.
● Beamforming Microphone
The built-in beamforming (BF) microphone has a pickup distance of 6 m; the low-distortion transverse beamforming algorithm directs the microphone to the speaker for better sound effects and clearer and better communication.
● Audio 3A Algorithm
The built-in audio 3A algorithm (AEC/AGC/ANS) and full-duplex mode meet the communication requirements of various rooms; people who sit at the conference table, sit or stand next to you can talk comfortably and clearly.
● Full-Frequency Speaker
The acoustically designed high-fidelity speaker minimizes
interference and offers extraordinary sound effects.
Connection to PCs or commercial large screens is realized through PnP USB ports; the out-of-the-box mechanism helps reduce wiring and offers easy-to-handle video communication, thereby lowering the user thresholds.
● Speaker Phone
Mobile phones and other devices can connect to this device via Bluetooth and use it as a Bluetooth microphone and loudspeaker, and to connect phone calls to audio and video conferences.
● Intelligent Analysis
The built-in intelligent analysis algorithm, the sound-driven positioning, the automatic box selection of participants, the automatic tracking of the speaker, and the switching of the speaker’s screen ensure the speaker is always clearly in the picture.
● Bluetooth 5.0
The transmission speed and distance of Bluetooth 5.0 are increased by 2 times and 4 times respectively, compared with the previous-generation technology; better audios are transmitted between mobile phones/tablets wirelessly via Bluetooth.
